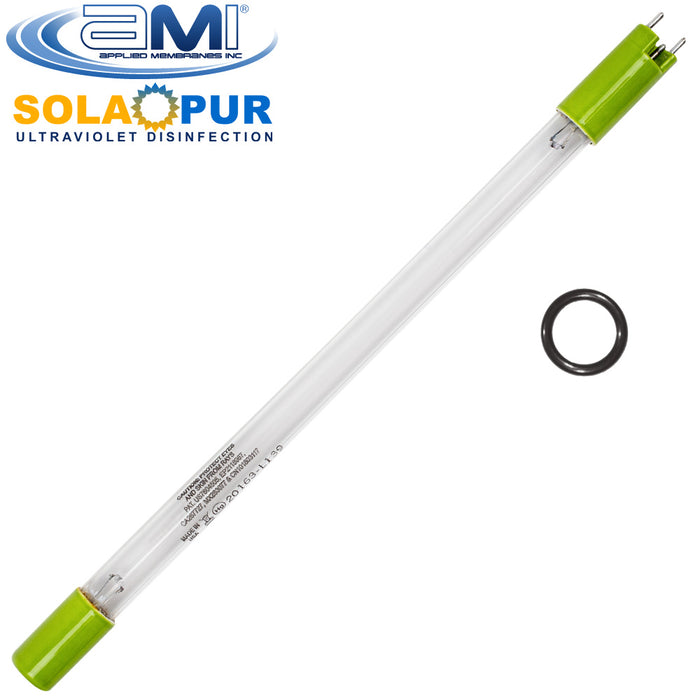

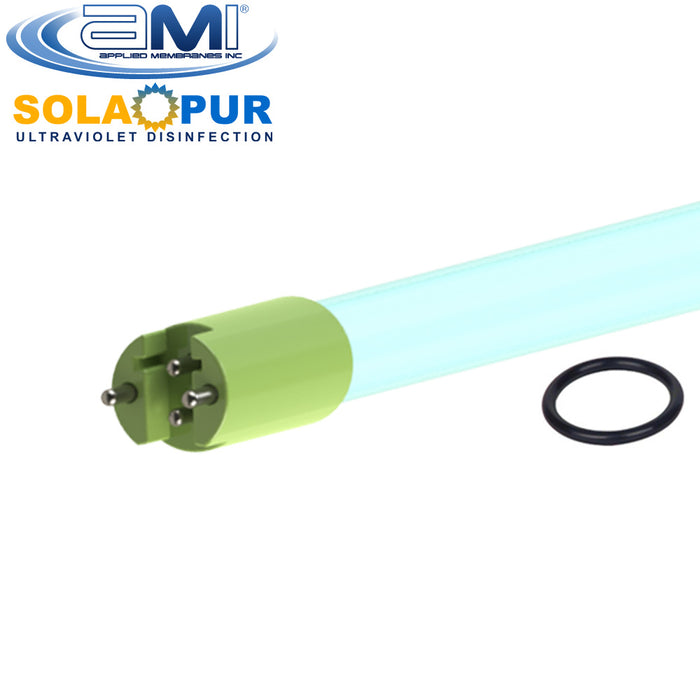

UV Lamp Replacement for Solapur UV-SPH-3 Ultraviolet Water Treatment Systems

Made in USA, Applied Membranes Solapur lamps are rated for 9,000 hour lamp life and have been extensively tested to ensure proper disinfection throughout the entire life of the lamp. All Solapur ultraviolet lamps are backed by Applied Membranes' quality and satisfaction guarantee, and a 1-year warranty. Solapur ultraviolet water treatment is proven to control bacteria, virus, and protozoa parasites in water including E. coli, Cryptosporidium, Giardia Lamblia, Salmonella, Legionella, Hepatitis A, Rotavirus, Adenovirus, and more*.

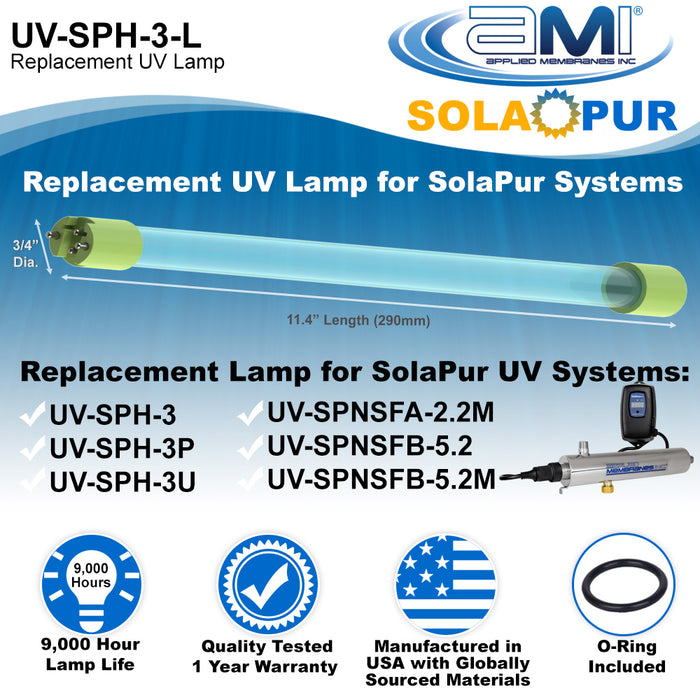

Applied Membranes Solapur UV-SPH-3-L replacement UV lamp is the direct replacement for Solapur Helios and Aurora NSF-Validated series Ultraviolet System models UV-SPH-3, UV-SPH-3P, UV-SPH-3U, UV-SPNSFA-2.2M, UV-SPNSFB-5.2, and UV-SPNSFB-5.2M.

*Refer to UV Dose Chart for Details on 4-log destruction of specific pathogens.

Specifications

Check your UV system's indicator lights to determine when a replacement lamp is needed.

• Green light means the UV is functioning properly and the water is safe to drink.
• Yellow light means the UV lamp is expiring soon and should be replaced shortly. The system is still operating and the water is currently safe to drink.
• Red light means the UV lamp is expired and should be replaced immediately, or if there is a system failure. Call for service immediately.

Lamp Countdown Timer

Solapur Helios Series UV Systems are equipped with an LED lamp count-down timer which will display the number of days remaining of the lamp's life. This allows you to see how long until your next service at a glance - to take the guesswork out of maintenance.

Audible and Visual Alarms

If the lamp fails or expires, the indicator light will glow red and an audible chirp alarm will sound to notify you that the water may not be safe to drink. The LED will display the reason for the alarm.

1. The pretreated water enters the UV reaction chamber and flows around the UV lamp.
2. Microbes in the water are exposed to the Ultraviolet Light, disrupting their DNA and making them unable to reproduce. They are now harmless.
3. Disinfected water is dispensed. The water is now safe for drinking and bathing.
