4" x 40" | 3,000 GPD | FRP Wrapped |High Flow Commercial Brackish RO Membrane | Applied Membranes

4" x 40" | 3,000 GPD | FRP Wrapped |High Flow Commercial Brackish RO Membrane | Applied Membranes

by AMI
SKU M-B4040AHF
Availability:
In Stock for Immediate Shipment
$275.00 - $275.00
$275.00
$275.00 - $275.00
$275.00

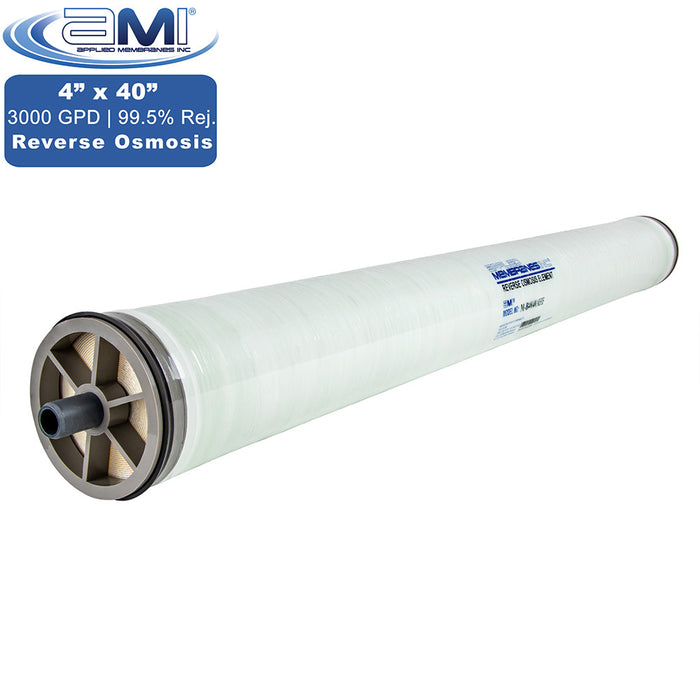

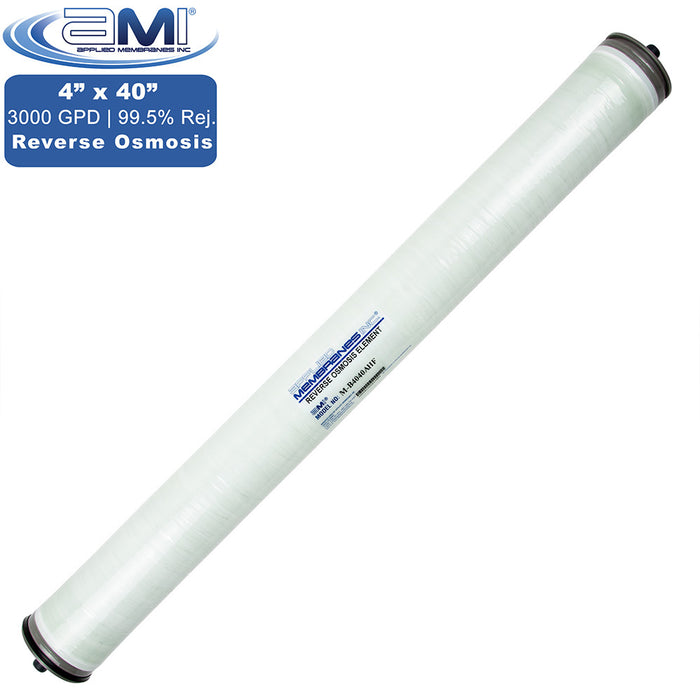

4" x 40" High Flow Brackish Water Reverse Osmosis Membrane | Fiberglasssed Shell | 3,000 GPD

AMI commercial thin film BWRO elements are wrapped in a hard shell of FRP for added strength and to withstand higher pressure drops. AMI commercial brackish water RO membrane elements produce high quality water from tap or brackish water sources in commercial RO systems, and are among the finest in the industry. With hundreds of thousands of membranes in operation in water filtration systems world-wide, AMI membranes have earned a reputation of delivering consistent, reliable, and long lasting performance, making AMI Membranes the natural choice for use in commercial RO systems. AMI Commercial Brackish Water Reverse Osmosis Membranes are constructed of tap water TFC (thin film composite) membrane material and fit standard PVC and Stainless Steel RO Membrane Housings.

AMI Membranes are Made in the USA in their ISO 9001:2015 Certified Facility and are 100% Quality and Performance Tested.

Genuine AMI Membranes ISO USA Quality

M-B4040AHF Specifications

AMI Part Number: M-B4040AHF
Membrane Size (Nominal): 4 x 40
Membrane Dimensions: 3.9"Dia. x 40"L
Flow Rate: 3,000 GPD (11,355)
Applied Pressure: 225 psi (1.6 MPa)
Stabilized Salt Rejection: 99.5%
Outer Wrap: Fiberglassed Shell
Membrane Type: Tap or Brackish Water
Membrane Sheet: TFC (Thin Film Composite)
Element Type: Spiral Wound
For Housing: Standard 4" x 40"
Feed Water Test Temperature: 77°F (25°C)
Single Element Recovery: 15%
Chlorine Tolerance: 0
Feed water pH Range: 2-11
Manufacturer: Applied Membranes, Inc.
Country of Manufacture: United States (USA)

AMI Membranes Product Specifications

Note: Performance specifications based on 2,000 mg/l sodium chloride, 225 psi (1.6 MPa) applied pressure, 77ºF (25ºC) feed water temperature, pH 8 and the recovery listed in the table above. Element permeate flow may vary ± 20%.

Features of AMI Brackish Water RO Membranes

  • High Rejection & Flow Rate
  • Hard fiberglass exterior provides added strength and withstands higher pressure drops than tape-wrapped elements.
  • Made in the USA
  • Manufactured in our ISO 9001:2015 Certified Facilities
  • 100% Performance and Quality Tested
  • Backed by our Experienced Technical Support Staff
  • High Quality for Consistent and Reliable Performance
  • Uses the most advanced membrane film technology and manufacturing processes
  • Standard dimensions to fit in commonly available housings

Applications for AMI Commercial BWRO Membranes

  • Restaurants
  • Aquariums
  • Whole House (Residential)
  • Office
  • Institutions
  • Hotels
  • Hospitals
  • Disaster Relief
  • Spot Free Rinse/Car Wash
  • Labs
  • Pharmaceutical
  • Humidification
  • Misting
  • Manufacturing
  • Rinse Water
  • Bottled Water
  • Water stores
  • Beverage
  • Food Processing
  • Ice Makers
  • Commercial Water Treatment
  • Ice Makers
  • Tap Water
  • Brackish Water
  • Wide Variety of Other Applications
40 x 40 BWRO Fiberglass FRP Shell Membrane Element Commercial

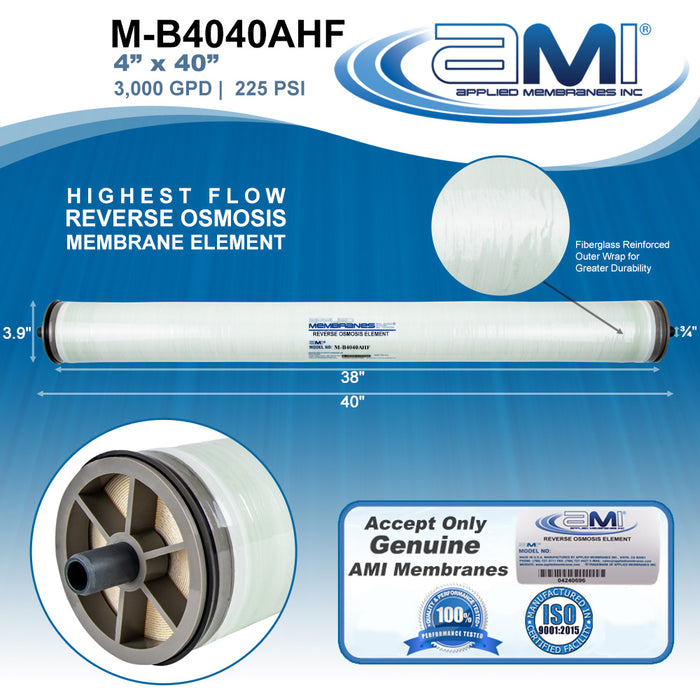

Physical Dimensions of M-B4040AHF:

Total Length (L):

40 In. (101.6 cm)

Membrane Length (I):

38 In. (96 cm)

Diameter (D):

3.9 In. (9.9 cm)

PWT (P):

0.75 In. (1.9 cm)

Replacement Compatibility for AMI 4 X 40 RO MEMBRANES

Applied Membranes M-B4040A FRP wrapped membrane elements can be used as direct replacement for many industry-standard 4x40 size RO elements with 3/4" male product water tubes ("stinger style") which are rated at 225psi. These include:

  • DuPont DOW FilmTec BW30-4040 (80783)
  • GE Desal AG4040FM (1206761), AG4040FF, AG-90 (3056665), 411-HF(PA) (1153192)
  • CSM RE4040-BN
  • Toray TM710
  • Axeon HR3-4040 (200373).

If you do not see your system listed or wish to learn more about compatibility, please contact us. Our certified water treatment experts will be happy to discuss your application. To ensure prompt and accurate information, please include as much information about your system as possible, such as: model, manufacturer, model of membranes being replaced, any available. product manuals or literature associated with your system, and photographs of your system or membranes.
