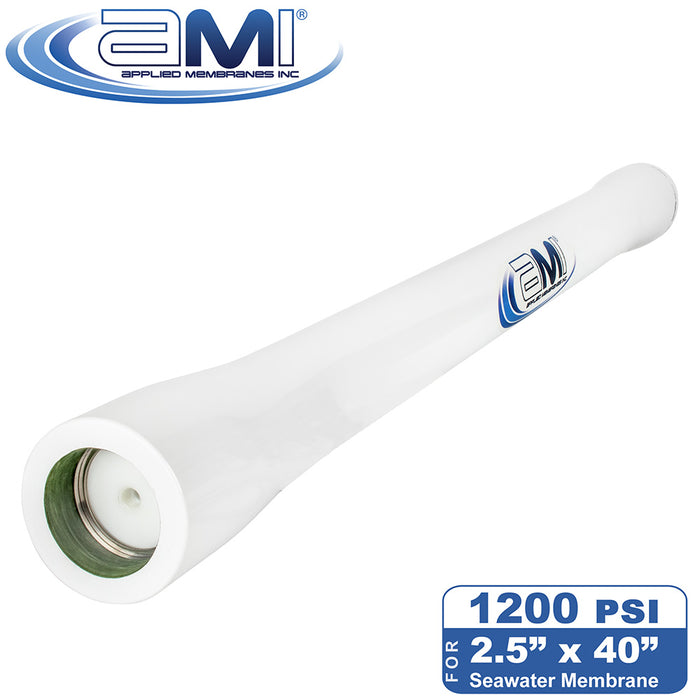

2.5" x 40" Fiberglass/FRP Seawater Membrane Housing Pressure Vessel for Watermaker

2.5" x 40" Fiberglass/FRP Seawater Membrane Housing Pressure Vessel for Watermaker

by AMI
SKU PV2540A1200E
Availability:
In Stock for Immediate Shipment
$614.99 - $614.99
$614.99
$614.99 - $614.99
$614.99

PVC Membrane Housing Pressure Vessels for RO Systems
2.5 x 40 Fiberglass Pressure Vessel Membrane Housing for Seawater RO Membranes

AMI fiberglass SWRO 1200 psi membrane housings are specially designed for seawater reverse osmosis membranes used in marine applications. Commonly used in watermakers, AMI FRP seawater pressure vessels are suitable for seawater desalination in shipboard applications, watermakers, land-based desalinators and sea-based desalinators.

AMI 25x40 fiberglass SWRO membrane housings use a strong coated fiberglass suitable for seawater conditions. AMI FRP vessels are designed for continuous use as housing for membrane filtration elements to purify waters including seawater at any positive pressure up to 1200 PSI. 2.5" Diameter pressures vessels are ideal for use in Watermakers or Off-Shore Seawater Reverse Osmosis Systems.

AMI 2.5" seawater vessels are sold standard with end caps designed for direct connection to Applied Membranes and FilmTec/DOW 2.5" x 40" standard, male style elements with ¾" product water tubes.

Made in USAAMI pressure vessels are manufactured
in Vista, CA, United States.


Note: Fiberglass membrane pressure vessels sold complete with end plugs and end closure hardware. Feed/brine port fittings and mounting hardware are not included.

SWRO Pressure Vessel Specifications

AMI Part # PV2540A1200E
Direct Replacement For: PV2540A1000E
PRO 2.5 1200-EP-1
For Membrane Size: 2.5" x 40"
For Membrane Type:
 AMI/Applied Membranes, DOW/FilmTec Style
For Membrane PWT Size: ¾" OD Product Water Tube
Design Pressure: 1200 psi @ 120°F
Min. Design Temperature: 20°F @ 1200 psi
Hydrotest Pressure: 1320 psi
Vessel Overall Dimensions: 3.8" OD x 44"L (9.7cm x 111.8cm)
Feed, Brine & Permeate Ports: 1/4" FNPT
Materials: FRP Body, Acetel End Port, 316 SS Ring
Configuration: End Port


Specifications for AMI SWRO Pressure Vessel

AMI SWRO Seawater Membrane Housing Features:

  • 1200 psi design pressure makes the 1200 PSI membrane housings ideal for seawater RO membranes and replacements in Watermaker systems
  • Suitable for corrosive seawater conditions
  • Direct connection to DOW/FilmTec and AMI/ Applied Membranes, Inc. industry-standard 25x40 membrane elements
  • Can be adapted to work with any make of 2.5 x40 spiral wound elements, as well as many hollow fiber elements
  • Multiple-Porting Technology
  • Designed for ease of installation and maintenance
  • Made in USA in Vista, California

Fiberglass Pressure Vessel Membrane Housings are used in water treatment systems for applications such as:

  • Seawater Desalination Reverse Osmosis Systems
  • Watermaker RO Systems
  • Membrane Systems for operating pressures up to 1,200 PSI
