4" x 40" Ultrafiltration Membrane | Polyacrylonitrile (PAN) UF | 20,000 MWCO

4" x 40" Ultrafiltration Membrane | Polyacrylonitrile (PAN) UF | 20,000 MWCO

4" x 40" Ultrafiltration Membrane | Polyacrylonitrile (PAN) UF | 20,000 MWCO

by AMI
SKU M-U4040PAN
Availability:
In Stock for Immediate Shipment
$430.99 - $430.99
$430.99
$430.99 - $430.99
$430.99

Applied Membranes Inc. Membrane Elements Water Treatment RO UF NF

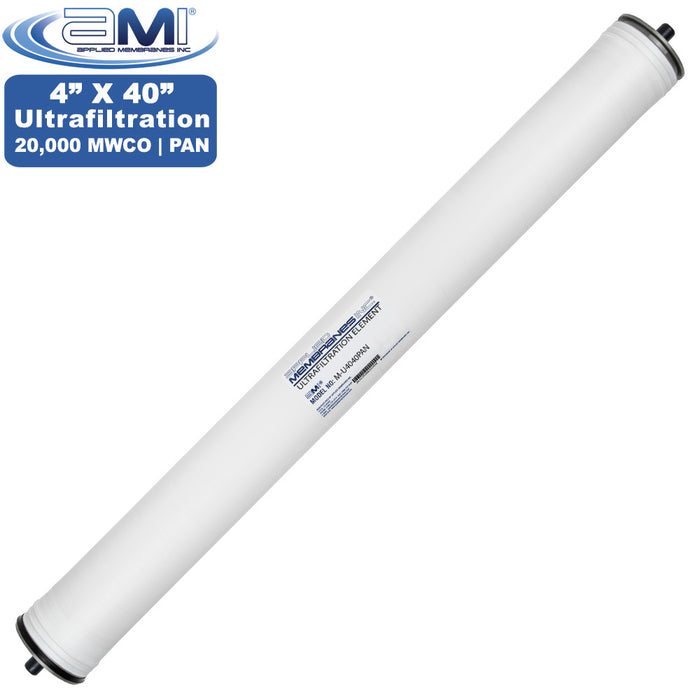

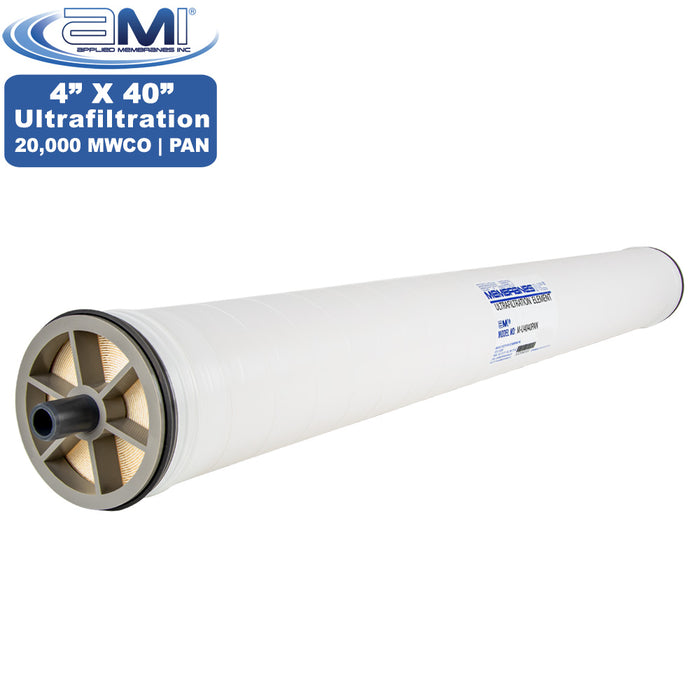

4" x 40" Ultrafiltration Membrane (UF Membrane) | Polyacrylonitrile PAN Membrane Elements

Applied Membranes polyacrylonitrile (PAN) spiral wound ultrafiltration (UF) membrane elements provide high performance with a molecular weight cut-off of 20,000, and are ideal for oily waste water and applications where tolerance to solvents and oils is required.

AMI UF Membranes are in their ISO 9001:2015 Certified Facility and are 100% Quality and Performance Tested.

Features of Applied Membranes Ultrafiltration PAN Membranes:

  • Tolerant to Many Solvents and Oils
  • Filtration to 20,000 Molecular Weight Cut-Off
  • Low Pressure Requirements For Reduced Operating Costs and Power Consumption
  • High Flux for High Flow Rates
  • Robust Materials and Construction for Long Life
  • Durable with good cleanability for long element life
  • Manufactured in our ISO 9001:2015 Certified Facilities
  • 100% Performance and Quality Tested
  • Backed by our Experienced Technical Support Staff
  • High Quality for Consistent and Reliable Performance
  • Uses the most advanced membrane film technology and manufacturing processes
  • Standard dimensions to fit in commonly available housings

M-U4040PAN Specifications

AMI Part Number: M-U4040PAN
Membrane Size (Nominal): 4x40
Membrane Dimensions: 3.9"Dia. x 40"L
Molecular Weight Cut-Off (MWCO) 20,000
For Housing: Standard 4" x 40"
Outer Wrap: Tape Wrapped
Membrane Type: Polyacrylonitrile (PAN) Ultrafiltration
Element Type: Spiral Wound
Maximum Operating Pressure: 200 psig @ 77°F (25°C)
Maximum Feed Flow: 20 gpm
Maximum Operating Temperature: 122°F (50°C)
Feed water pH Range: 3-9

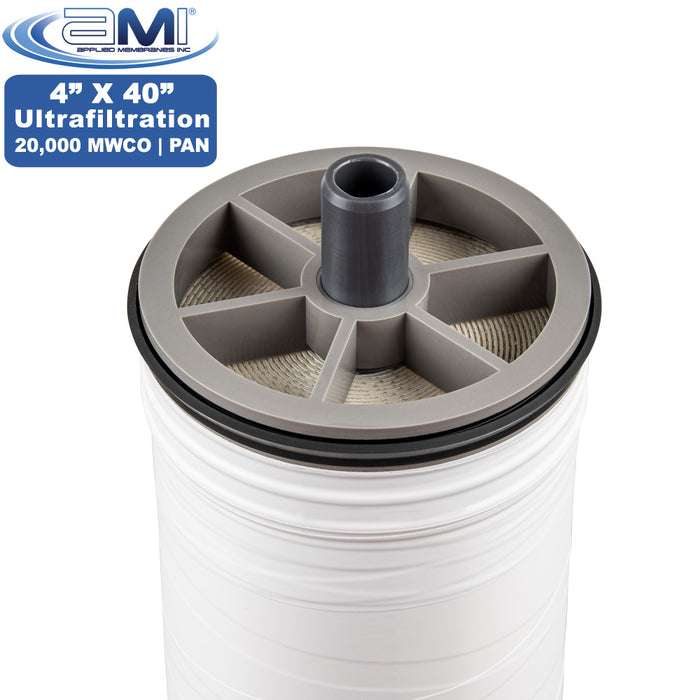

End Style: Male PWT (Stinger Style)
Manufacturer: Applied Membranes, Inc.
Country of Manufacture: United States (USA)

AMI Membranes Product Specifications

Applications for Nanofiltration Membrane Elements:

  • Fuel Oil/Water Separations
  • Gray Water
  • Black Water
  • Paper Wastewater Treatment
  • Pulp Wastewater Treatment
  • Lignin Wastewater Cleanup
  • Textile Wastewater Cleanup
  • Applications Requiring Tolerances to Many Solvents and Oils

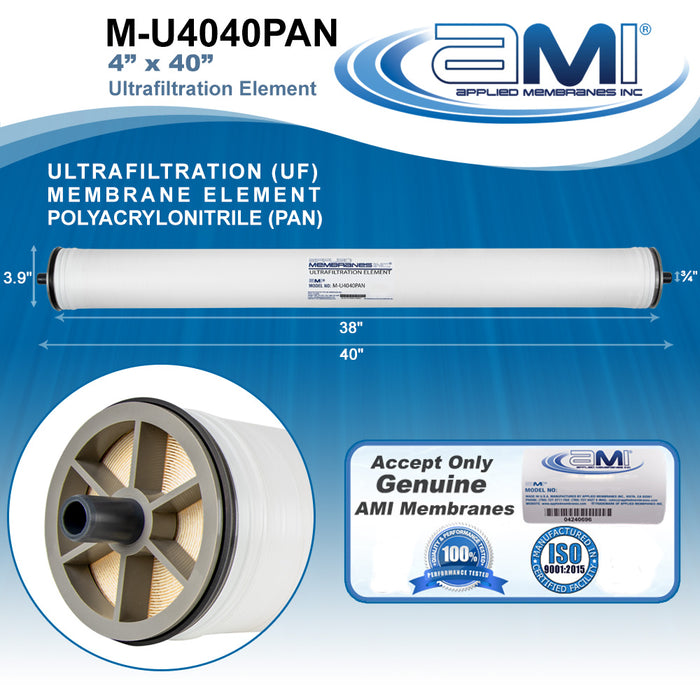

Reverse Osmosis Membrane Dimensions

Physical Dimensions of M-U4040PAN:

Total Length (L):

40 In. (101.6 cm)

Membrane Length (I):

38 In. (96 cm)

Diameter (D):

3.9 In. (9.9 cm)

PWT (P):

0.75 In. (1.9 cm)

Replacement Compatibility for AMI 4 X 40 UF MEMBRANES

Applied Membranes M-U4040PAN membrane elements fit industry-standard 4x40 membrane housings and can be used as direct replacement for many industry-standard 4x40 size spiral wound polyacrylonitrile ultrafiltration elements with 3/4" male product water tubes ("stinger style").
