2.5" x 21" UF PES Membrane 10,000 MWCO

2.5" x 21" UF PES Membrane 10,000 MWCO

by AMI
SKU M-U2521PES
Availability:
Ships in 5 Days
$0
$309.99 - $309.99
$309.99
$309.99 - $309.99
$309.99

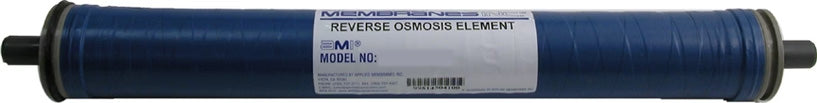

AMI 2.5x21 Polyethersulfone (PES) Ultrafiltration Membrane Element

AMI® polyethersulfone (PES) spiral wound ultrafiltration(UF) membrane elements provide removal of fine particles from aqueous solutions to a molecular weight cut-off (MWCO) of 10,000.

Note: Element tape color may vary from the item pictured above.

Benefits of AMI Ultrafiltration Elements:

  • Tolerant to Solvents, Esters and Aromatics
  • Absolute Bacteria and Virus Removal
  • High flux results in high yields
  • Low energy usage reduces power consumption and cost
  • Made in the USA
  • Manufactured in ISO 9001:2015 Certified Facilities
  • 100% Performance and Quality Tested
  • High Quality for Consistent and Reliable Performance
  • Uses the most advanced membrane film technology and manufacturing processes
  • Standard dimensions to fit in commonly available housings
Genuine AMI Membranes ISO USA Quality

Specifications for M-U2521PES UF

AMI Model Number M-U2521PES
Membrane Typel: Polyethersulfone (PES)
Size (Approximate): 2.5" Dia. x 21"L
Molecular Weight Cut-Off: 10,000
Spacer: 30 mil
Exterior: Tape Wrapped



Operating Limits for PES Elements

Maximum Operating Temperature: 140°F (60°C) at 100 psi
Maximum Operating Pressure: 150 psi (10 bar) at 77°F (25°C)
Maximum Feed Flow Rate: 20 gpm (1.4m³/h)
pH Range, Continuous Operation: 2-11
pH Range, Short-Term Cleaning: 1-13
Fere Clorine Tolerance: 5,000 ppm days

Specifications for SWRO Membranes for Watermakers

Related Products for use with 25x21 PES UF Elements

PV2521PVCAU 2.5x21 Membrane Housing - PVC - U-Pin Style End Closures
PV2521SSAU-316 2.5x21 Membrane Housing - 316 Stainless Steel - U-Pin Style End Closures

Common Applications for Polyethersulfone Ultrafiltration Elements:

  • Absolute bacteria and virus removal from surface waters, beverage and liquid food processing and byproduct streams
  • Applications requiring tolerance to solvents
  • Treatment of oil, food, and pharmaceutical streams that require resistance to many esters and aromatics
  • Recovery of proteins, gelatin, enzymes, whey protein

Physical Dimensions of M-U2521PES UF Element

M-U2540PES 2.5
INCHES (MM)
L 21.0 (53.3)
I 19.0 (48)
D 2.4 (61)

Literature and Additional Information for AMI Ultrafiltration Elements
