AMI M-S2519A-150 Seawater RO Membranes can be used as replacements in Village Marine Sea Quencher SQ-145 and LIttle Wonder LWM-145 Watermakers with exceptional value and performance benefits. AMI SWRO membranes offer the high rejection and high productivity that is ideal for seawater desalination in shipboard applications, watermakers, land-based desalinators and sea-based desalinators, and are among the finest in the industry. For the past 35 years, AMI Membrane elements have earned the reputation of consistent quality. AMI Membranes are Made in the USA in their ISO 9001:2015 Certified Facility and are 100% Quality and Performance Tested.
Looking for a replacement seawater desalination membrane element for your watermaker filter system?
View our Watermaker Replacement Cross Reference Chart.
Benefits of AMI Seawater Membranes for Village Marine Watermakers:
- Add AMI Membrane Quality and Value to your Existing Seawater Desalination Equipment
- Convert seawater into drinking water on yachts, boats, cruise ships, off- shore platforms, and resorts
- High Rejection & Flow Rate
- Made in the USA
- Manufactured in ISO 9001:2015 Certified Facilities
- 100% Performance and Quality Tested
- High Quality for Consistent and Reliable Performance
- Uses the most advanced membrane film technology and manufacturing processes
- Standard dimensions to fit in commonly available housings
|
|

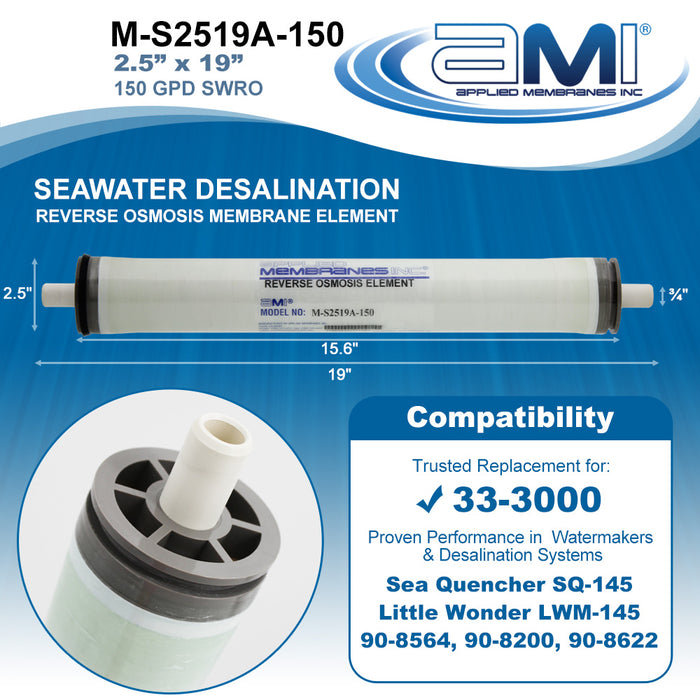

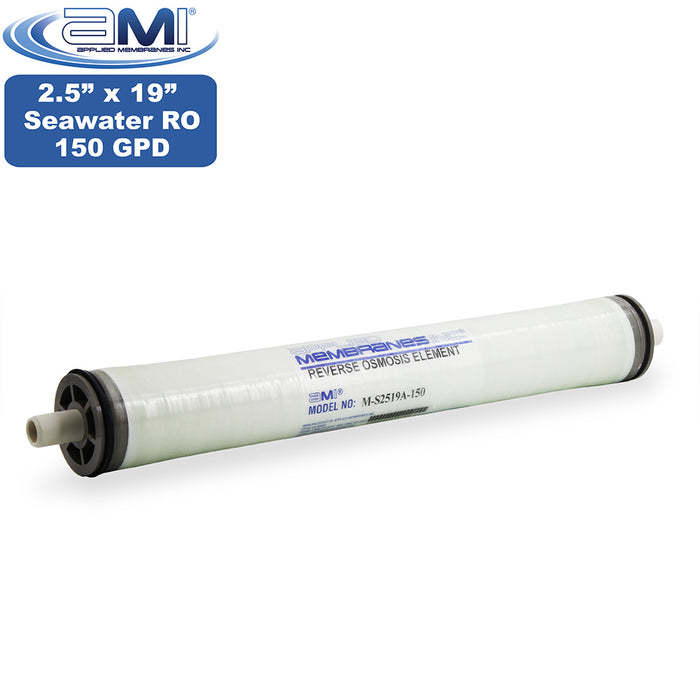

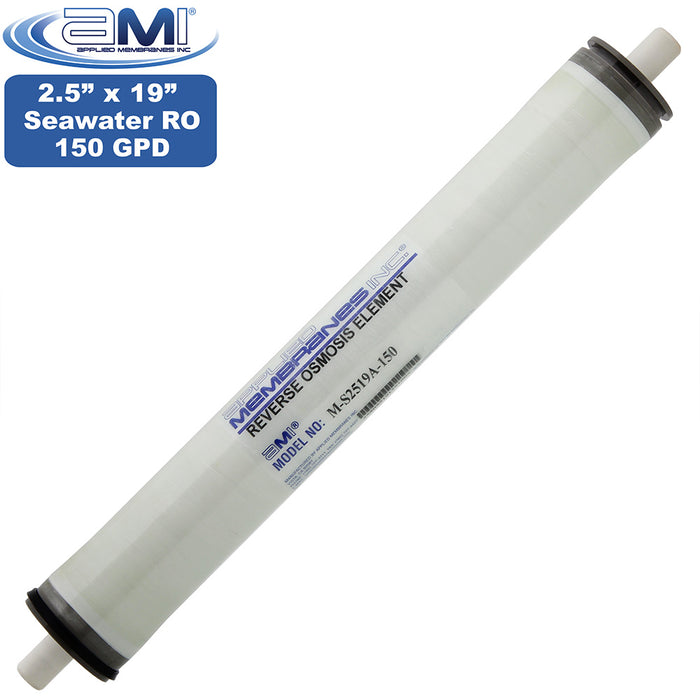

M-S2519A-150 Specifications
|
|
| AMI Model Number |
M-S2519A-150 |
Replaces Membrane Models:
|
Village Marine 33-3000
AquaPro 33-3000
Parker Racor 3000 |
For use in System Models:
|
Sea Quencher SQ-145
Little Wonder LWM-145
90-8564, 90-8200, 90-8622 |
For Use in Vessel:
|
Parker 32-2519
Village Marine 32-2519 |
| Size (Approximate): |
2.5" Dia. x 19"L |
| Flow Rate: |
150 gpd (0.57 m³/d) |
| Applied Pressure: |
800 psig (55 bar) |
| Stabilized Salt Rejection: |
99.6% |
| Minimize Salt Rejection: |
99.4% |
| Exterior: |
Hard Shell Fiberglass |
Membrane Type:
|
Polyamide Thin-Film
Composite |
|
|
Permeate flow and salt rejection based on 32,000 ppm NaCl feed stream, pressure and recovery listed above. Element Permeate flow may vary +/- 20%
Operating Limits for M-S2519A-150
|
|
| Maximum Operating Temperature: |
113°F (45°C)
|
| Maximum Operating Pressure: |
1,000 psig (69 bar) |
| Maximum Pressure Drop: |
15 psig (1 bar) |
| Maximum Feed Flow Rate: |
6 gpm (1.4m³/h)
|
| pH Range, Continuous Operation: |
2-11 |
| pH Range, Short-Term Cleaning: |
1-13 |
| Maximum Feed Silt Density Index: |
SDI 5 |
| Free Chlorine Tolerance: |
0 |
|
|
|
